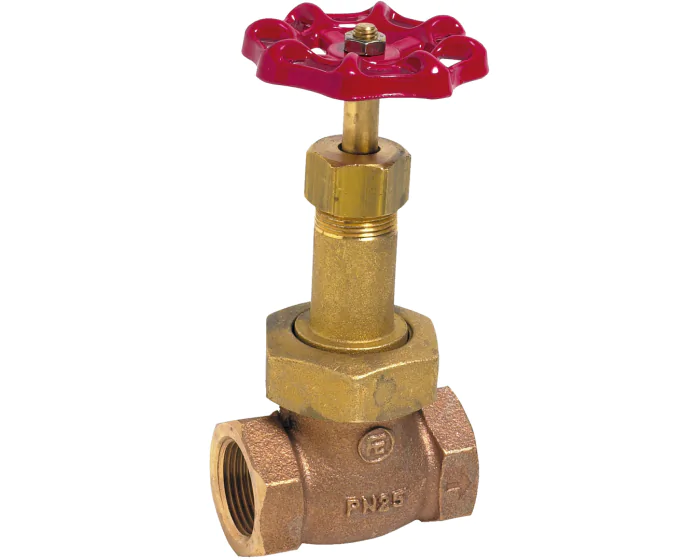

Bronze globe valve 454 with PTFE tightness, bronze body, and PTFE seat. Full bore, PN25, female BSP connections for water networks. Operates from -10°C to 180°C, ensuring reliable flow control and shut-off. Ideal for various applications.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Bonnet material | Brass CW617N |
| Type of seat | parallel |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1. Rate A |
| Steam | Yes |
| Opening device | Handwheel |
| Shaft/stem matérial | Brass CW614N |
| Opening device/signal | Manual |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 46.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Gasket | PTFE |
| Body material | Bronze |
| Bore | Full |
| PS (bar) | 25 |
| Connections | BSP FF |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Brass CW614N |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Full 1/4'' | 454002 | S1010683 |
€57.16
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/8'' | 454003 | S1010684 |
€57.11
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1/2'' | 454004 | S1010685 |
€65.17
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/4'' | 454005 | S1010686 |
€89.03
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1'' | 454006 | S1010687 |
€119.89
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/4 | 454007 | S1010688 |
€197.51
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/2 | 454008 | S1010689 |
€237.83
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2'' | 454009 | S1010690 |
€345.16
(excl. btw)
|
add to cart |
